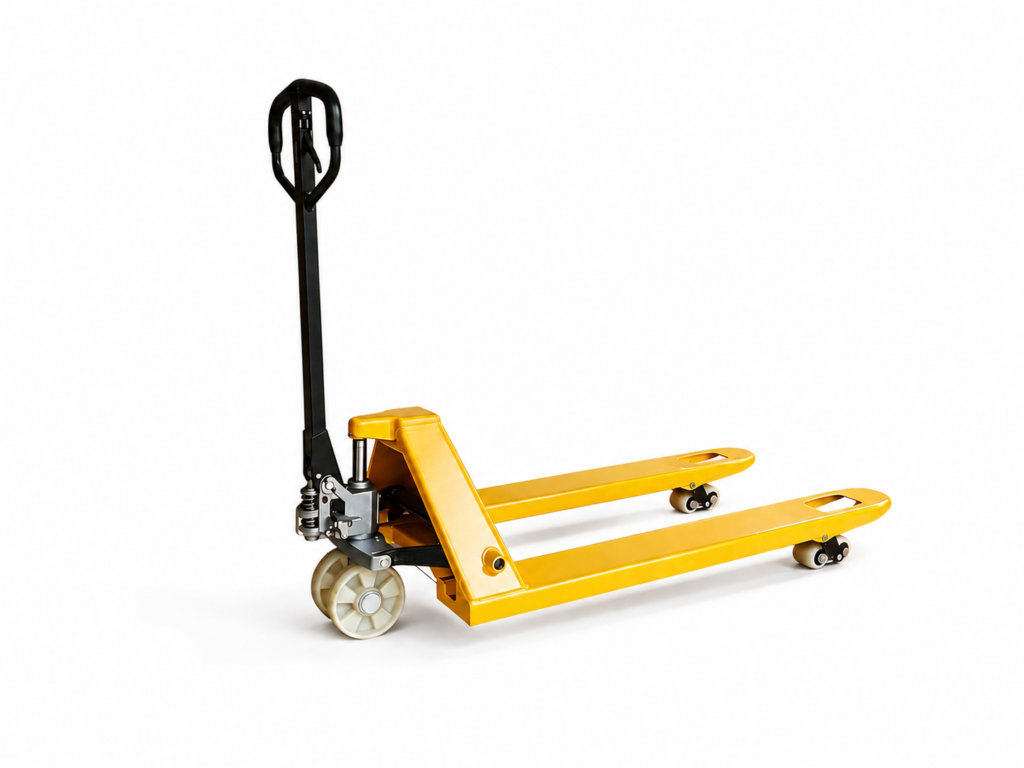

3.0T Heavy-duty Hand Pallet Truck
Manual hydraulic pallet truck for heavier pallet loads and routine short-distance handling.
Load Capacity: 3,000 kg
Drive: Manual hydraulic
Fork Length: 1150 / 1220 mm common options
Application: Heavier ground-level pallet transport
Key Specifications
| Specification | HPT30 |
| Product Type | Heavy-duty Manual Hydraulic Hand Pallet Truck |
| Rated Capacity | 3,000 kg |
| Operation | Fully manual hydraulic |
| Battery / Charger | Not required |
| Reference Fork Height | 85–195 mm* |
| Low-entry Option | 75–185 mm configuration may be available* |
| Fork Length Options | 1100 / 1150 / 1220 mm* |
| Fork Outside Width Options | 520 / 550 / 685 mm* |
| Steering Wheel Diameter | Ø180 mm |
| Load Rollers | Single or tandem configurations* |
| Common Export Configurations | 550 × 1150 mm / 685 × 1220 mm* |
* Fork height, fork dimensions and roller configuration vary by configuration. Final specifications are confirmed before order.
Product Details

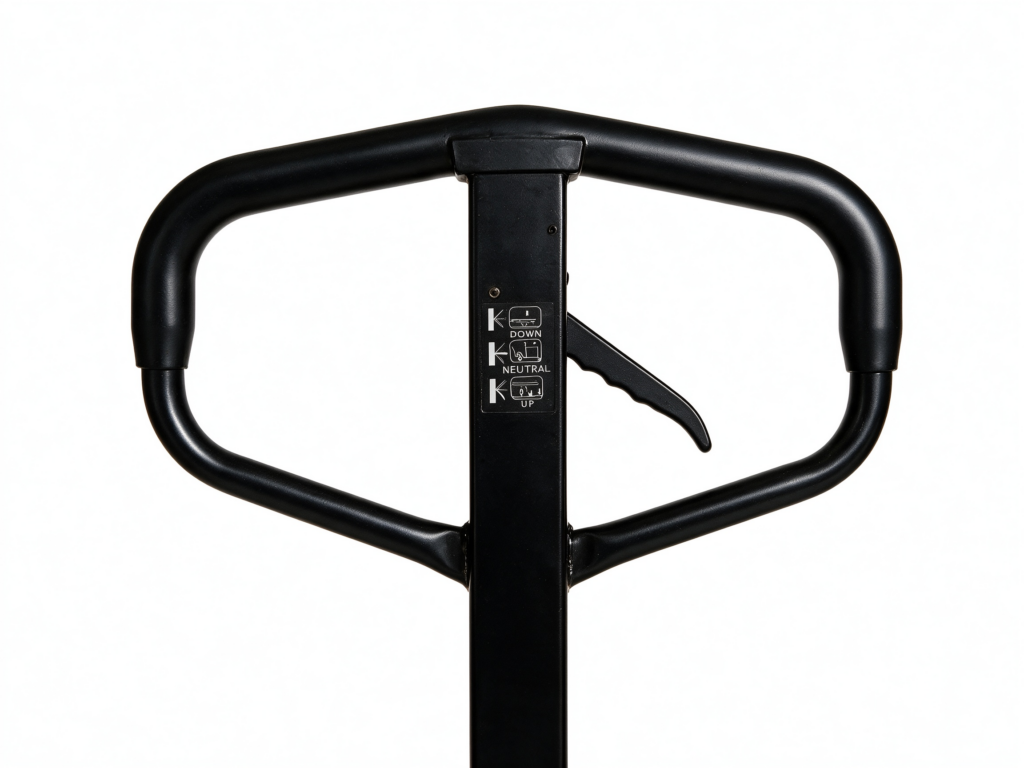

Three-position Operating Handle
Lift, neutral/travel and lowering functions are controlled from the operating handle.

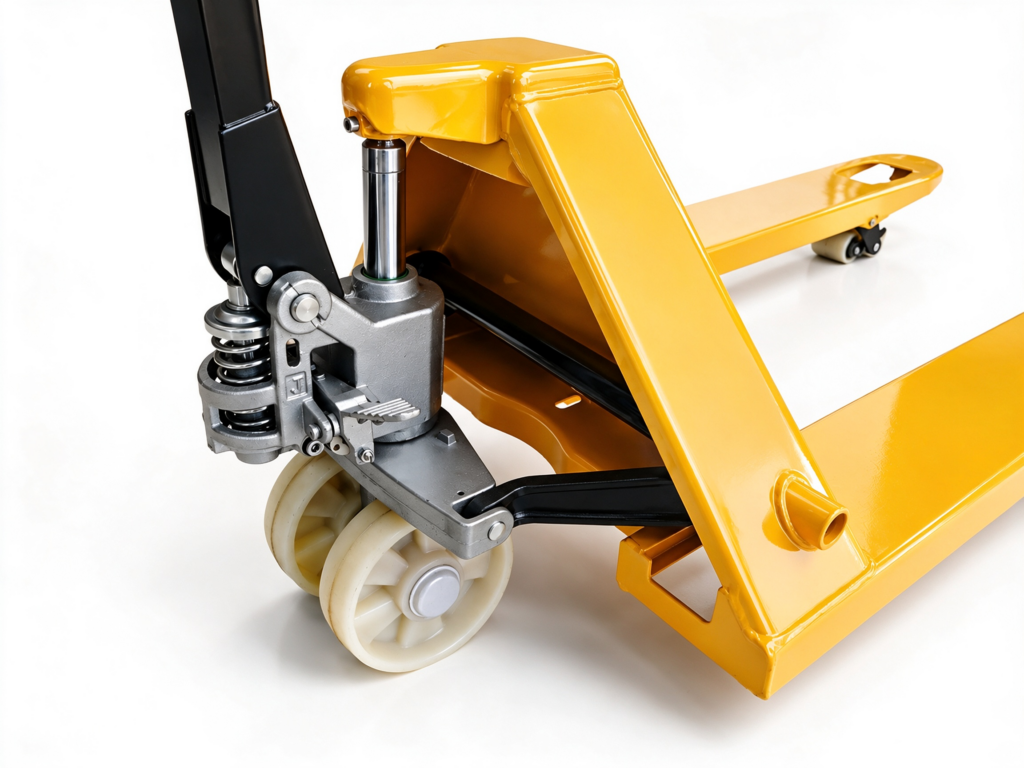

Hydraulic Pump & Steering Wheel
Manual hydraulic lifting system with robust pump and steering-wheel components for routine pallet handling.

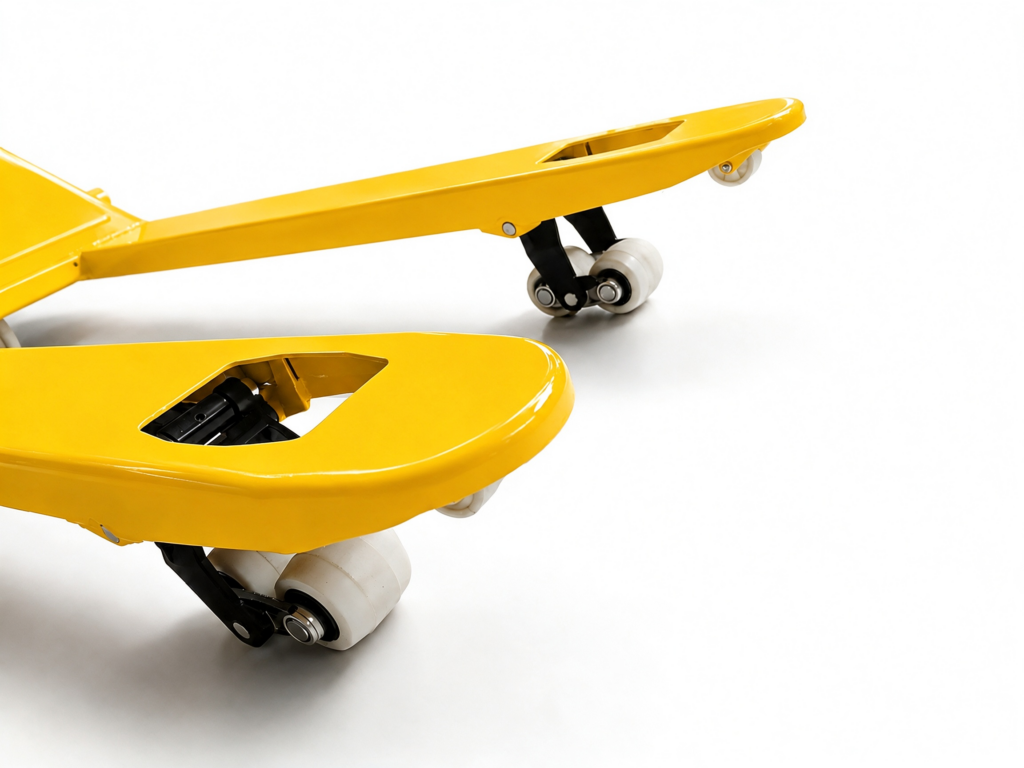

Fork Tips & Load Rollers
Guide rollers help pallet entry, while the load-roller configuration is confirmed to suit the required setup.
