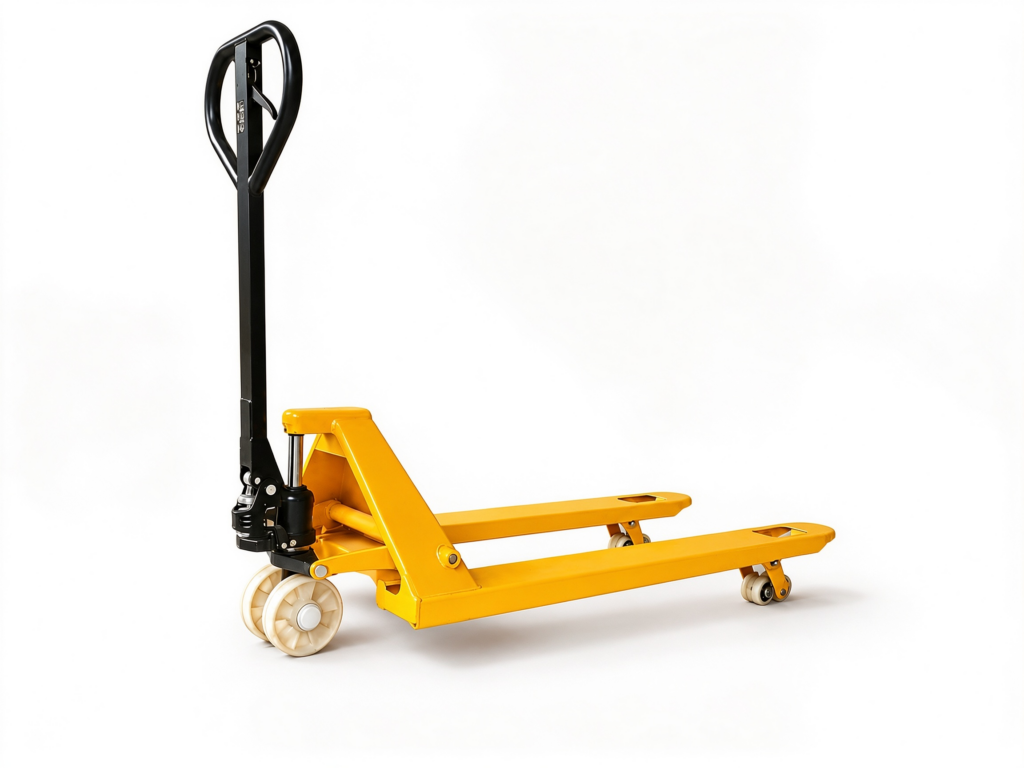

2.0T Hand Pallet Truck
Manual hydraulic pallet truck for routine short-distance pallet movement.
Load Capacity: 2,000 kg
Drive: Manual hydraulic
Fork Length: 1150 / 1220 mm
Application: Ground-level pallet transport
Key Specifications
| Specification | HPT20 |
| Product Type | Manual Hydraulic Hand Pallet Truck |
| Rated Capacity | 2,000 kg |
| Operation | Fully manual hydraulic |
| Battery / Charger | Not required |
| Lowered Fork Height | 75 mm |
| Raised Fork Height | Approx. 190 mm reference* |
| Fork Length Options | 1150 / 1220 mm* |
| Fork Outside Width Options | 520 / 550 / 680 mm* |
| Steering Range | 190° |
| Steering Wheel Diameter | Ø160 mm reference |
| Load Rollers | Single or tandem configurations* |
| Wheel Material | Nylon / polyurethane / rubber* |
* Fork size, raised height, wheel material and roller configuration are confirmed before order.
Product Details

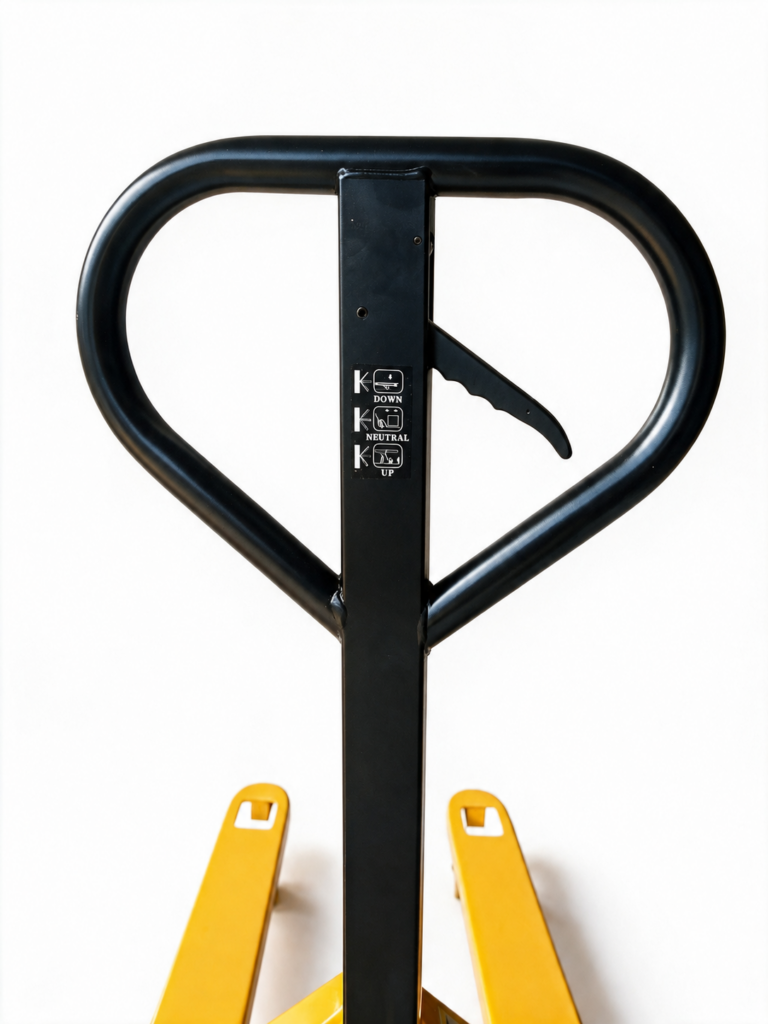

Three-position Control Handle
Lift, lower and neutral functions are controlled from the operating handle.

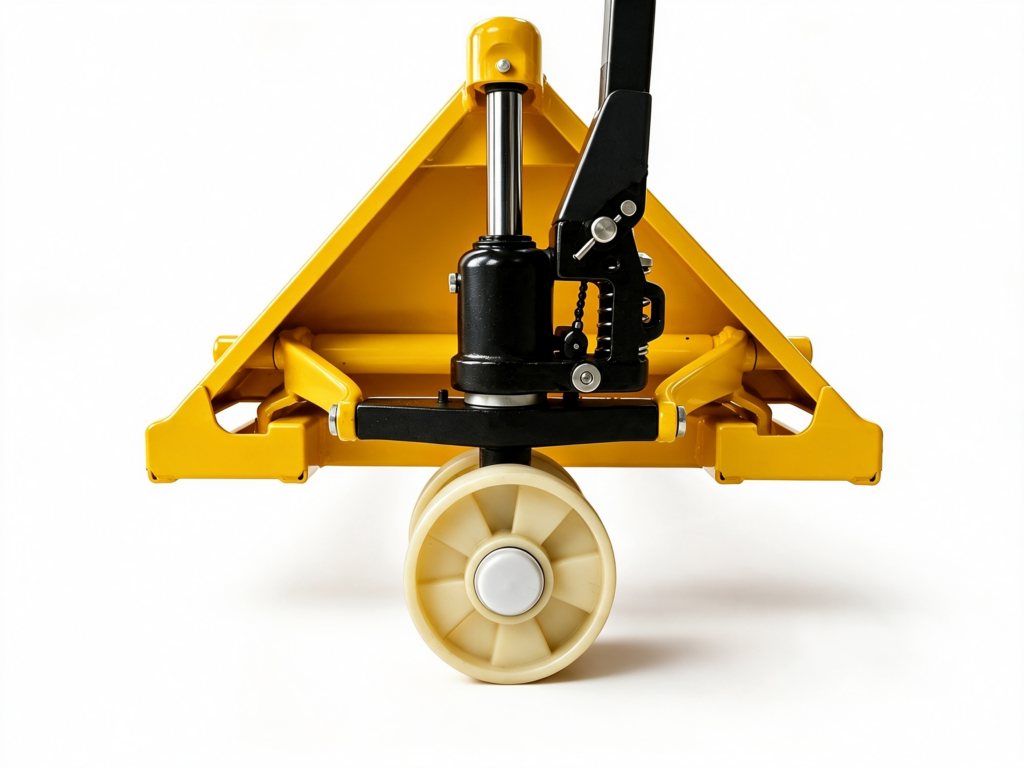

Hydraulic Unit & Chassis
Manual hydraulic lifting system integrated into the reinforced chassis structure.

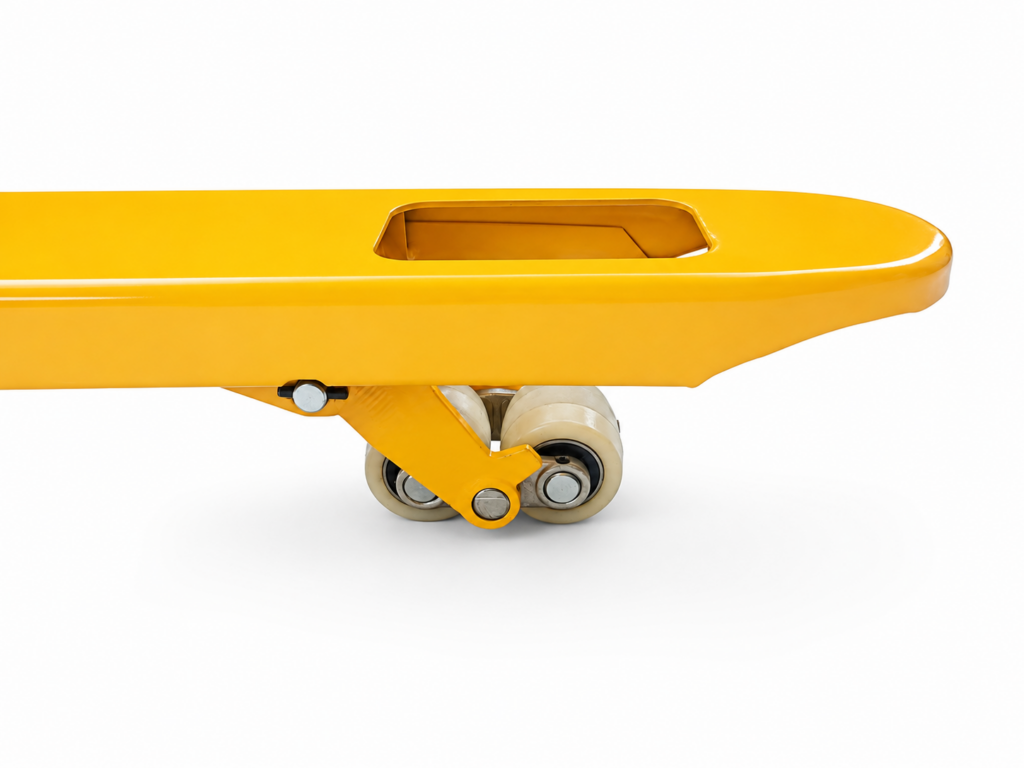

Fork & Load Rollers
Fork dimensions and load-roller configuration can be selected according to the pallet and floor condition.
Not Sure About the Configuration?
Send us a photo or tell us what you need in your own words. We’ll help confirm the suitable configuration.
