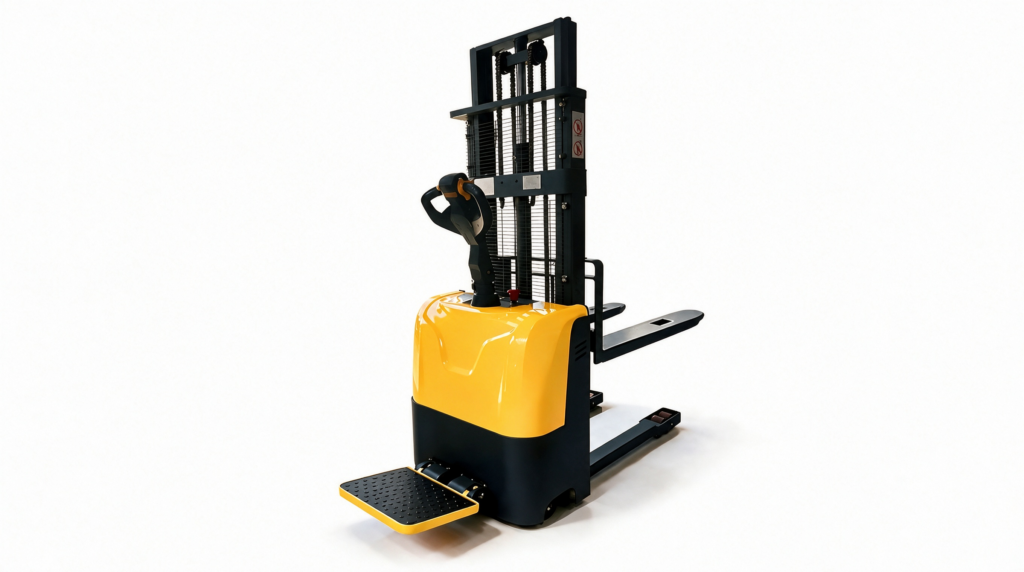

1.5T Ride-on Electric Stacker
Ride-on electric stacker with a foldable standing platform for pallet transport and rack stacking.
Rated Capacity: 1,500 kg nominal *
Operation: Ride-on / standing platform
Lift Height: 3.0 m standard configuration
Battery: 24V / 105Ah lead-acid
* Load capacity decreases with lift height. Final capacity at the required height is confirmed before order.
Key Specifications
| Specification | ES15R |
| Product Type | Ride-on Electric Stacker |
| Rated Capacity | 1,500 kg nominal* |
| Load Center | 600 mm |
| Operation | Ride-on / standing platform |
| Standard Lift Height | 3,000 mm |
| Lift Height Options | 1600 / 2500 / 3000 mm · 3300 / 3500 mm on request* |
| Lowered Fork Height | 90 mm |
| Fork Length Options | 1070 / 1150 mm* |
| Fork Outside Width | 300–695 mm listed range* |
| Travel Speed, Loaded / Unloaded | 4.3 / 4.5 km/h |
| Gradeability, Loaded / Unloaded | 5% / 15% reference |
| Braking | Electromagnetic |
| Battery | 24V / 105Ah lead-acid* |
* Rated capacity is nominal. Actual allowable load decreases as lift height increases. Higher mast, fork and battery configurations are confirmed before order.
Product Details

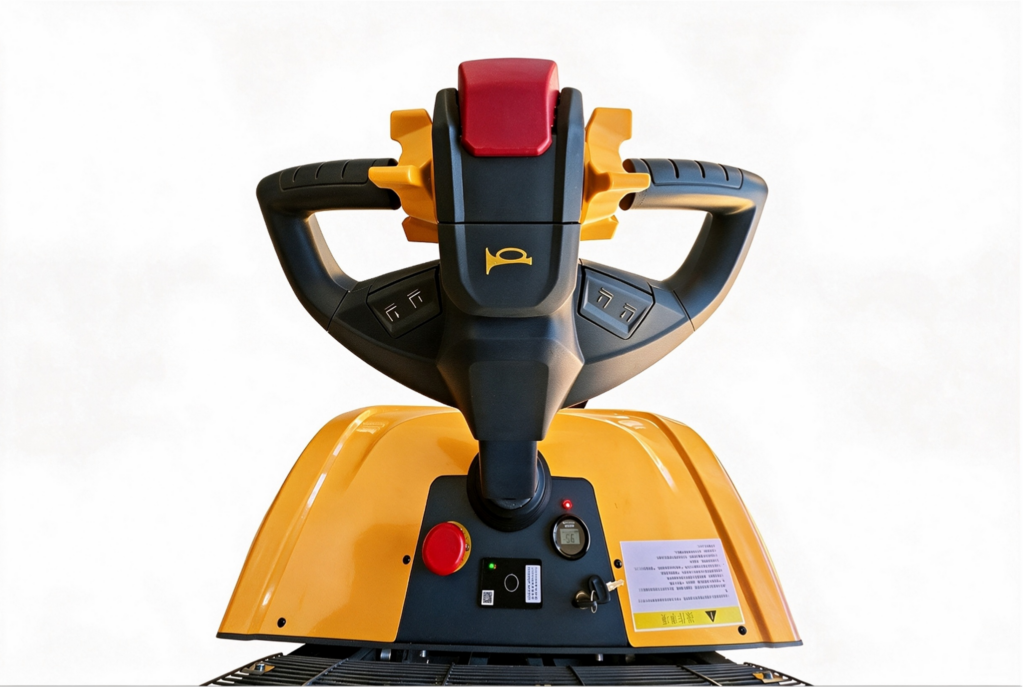

Multifunction Control Handle
Travel, lifting, lowering and slow-speed controls are grouped around the operating handle for straightforward daily operation.

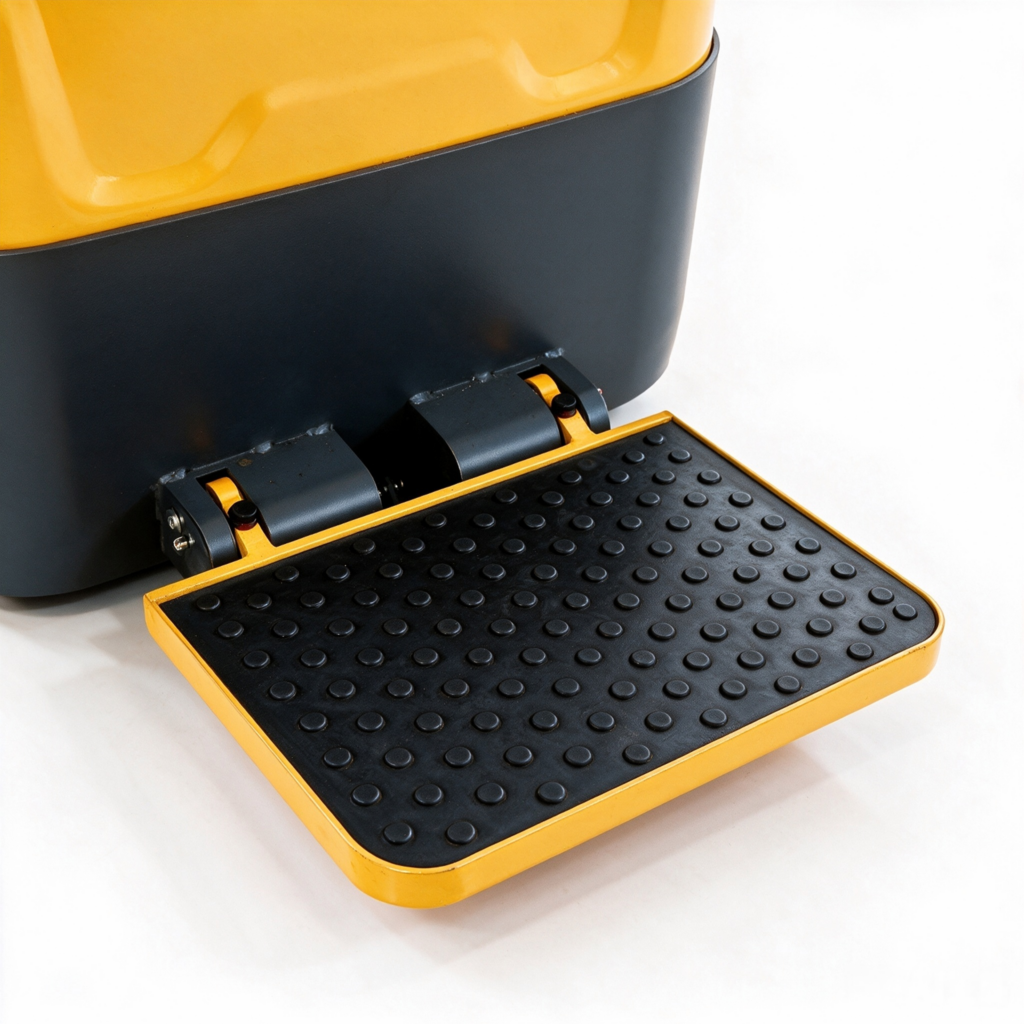

Foldable Standing Platform
The foldable anti-slip standing platform provides a ride-on position for repeated warehouse travel.

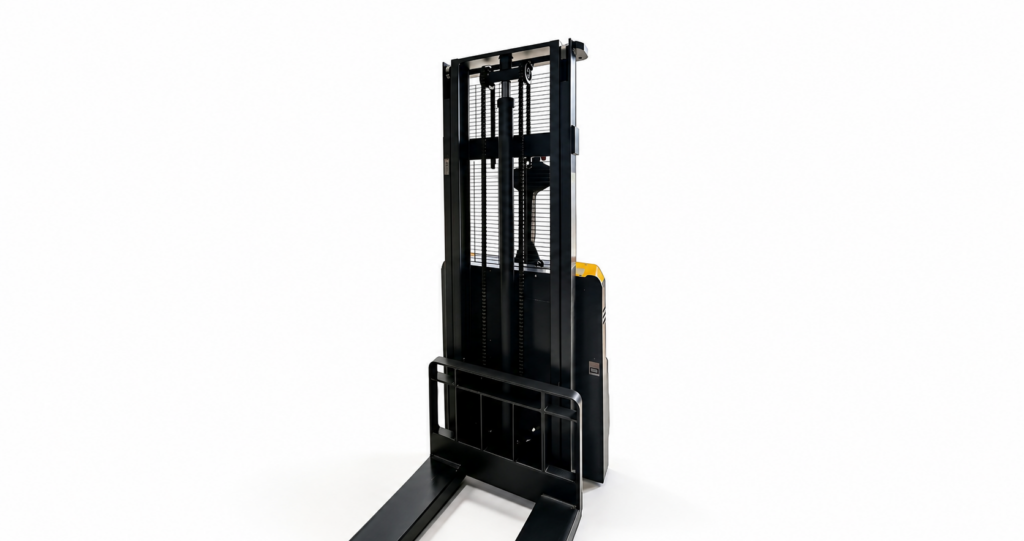

Mast, Guard & Forks
The mast, protective guard and fork structure support pallet lifting and rack-stacking applications.
